What is included?

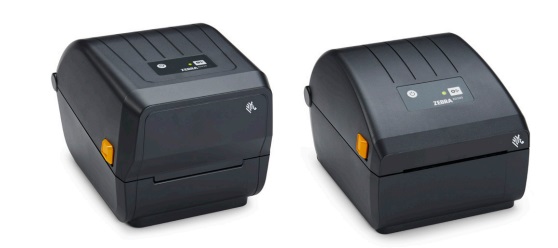

Zebra USB Label Printer - ZD22042
- Printer
- Power Supply
- USB Cable
Features
- Read barcodes from any direction, including traditional linear and 2D barcodes
- Plug and Play - simple installation with any USB port
How to setup the printer?
Connect the USB Type A side of the cable into the USB port of the EPOS Till.
The other end of the cable should be connected to the scanner.
How to load label?
- Open and place roll on holder
- Push the papers under guides
- Align sensor near center

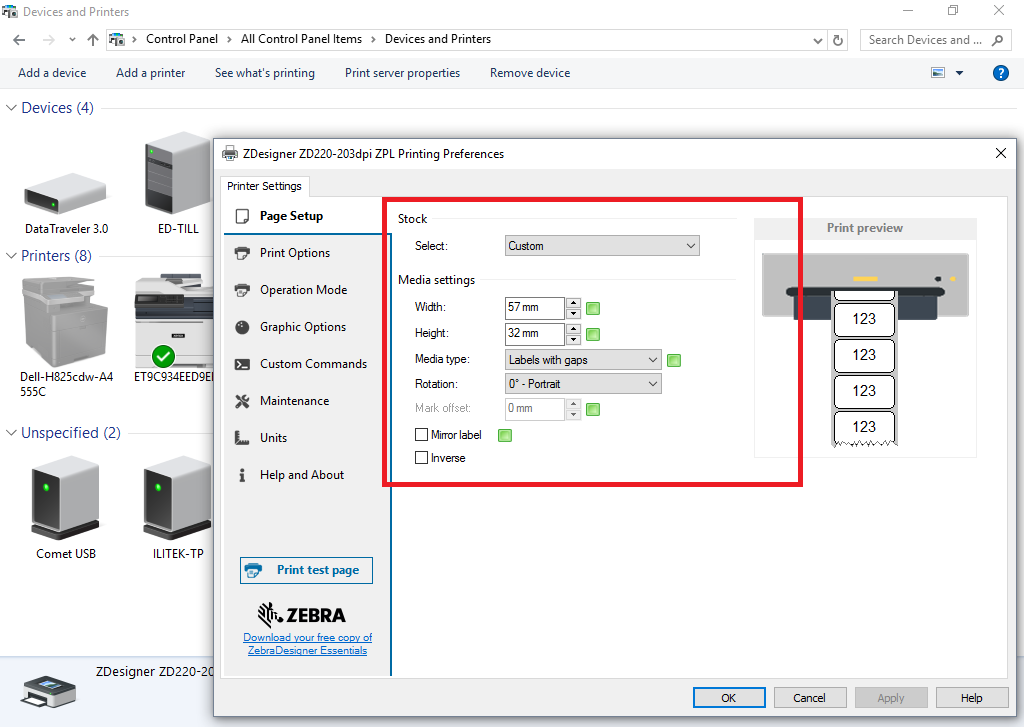

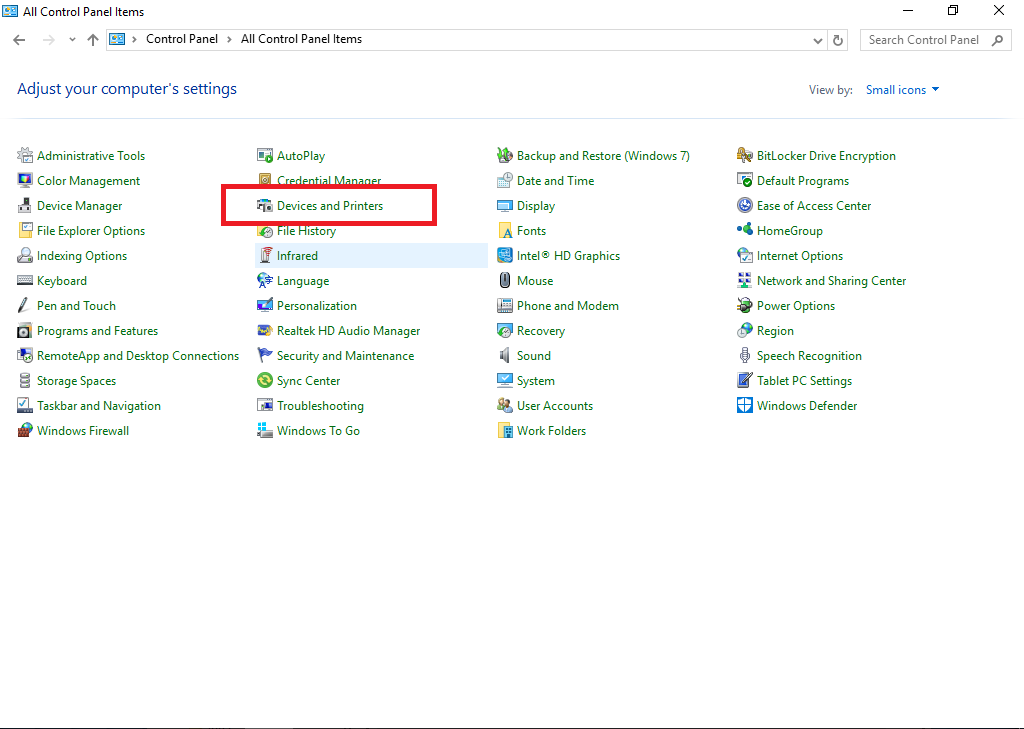

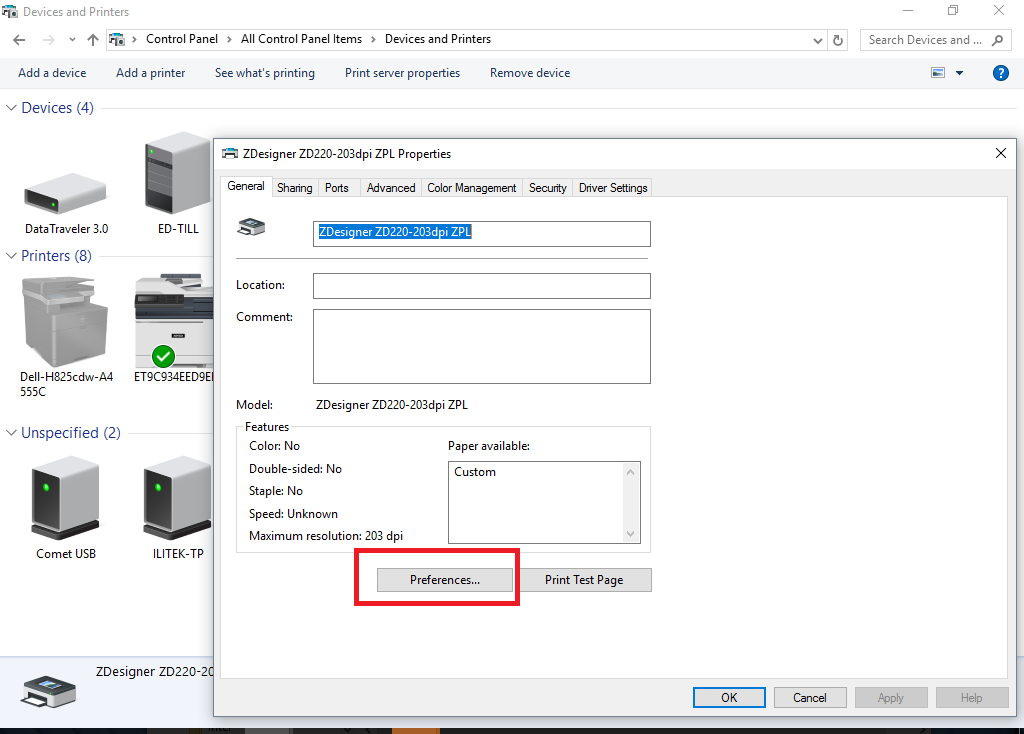

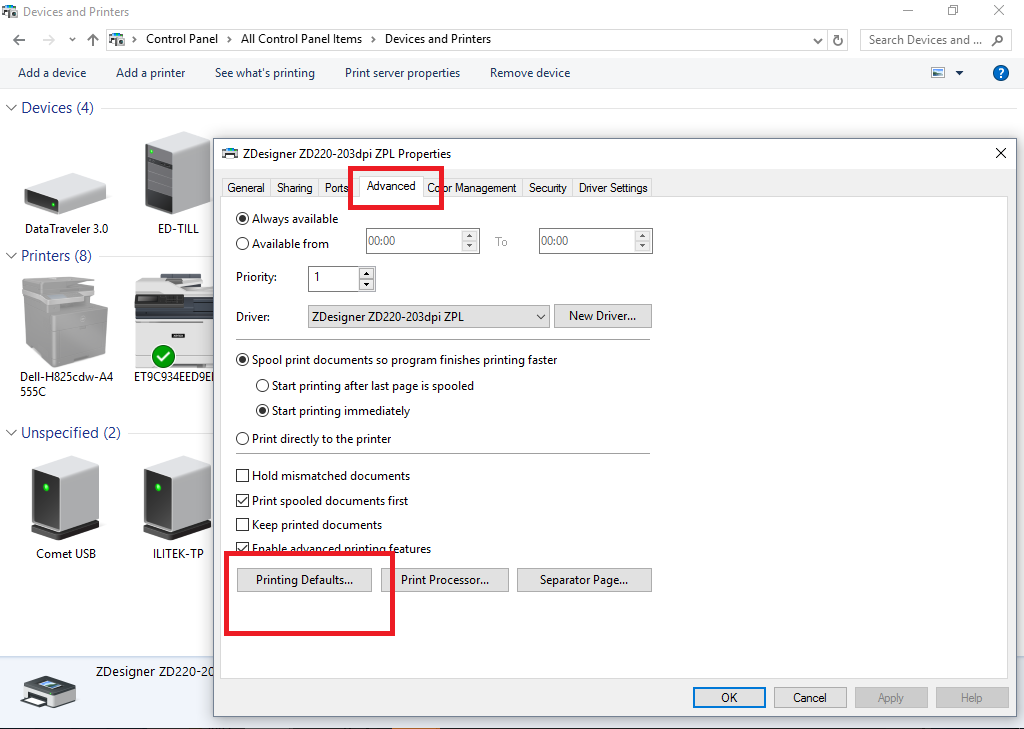

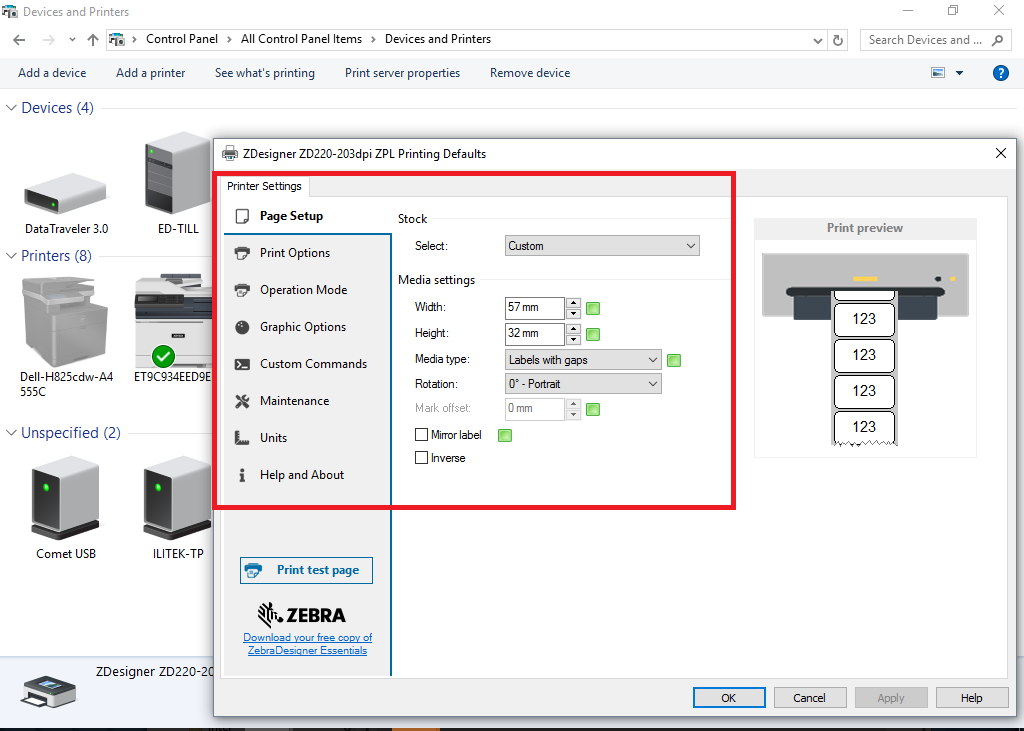

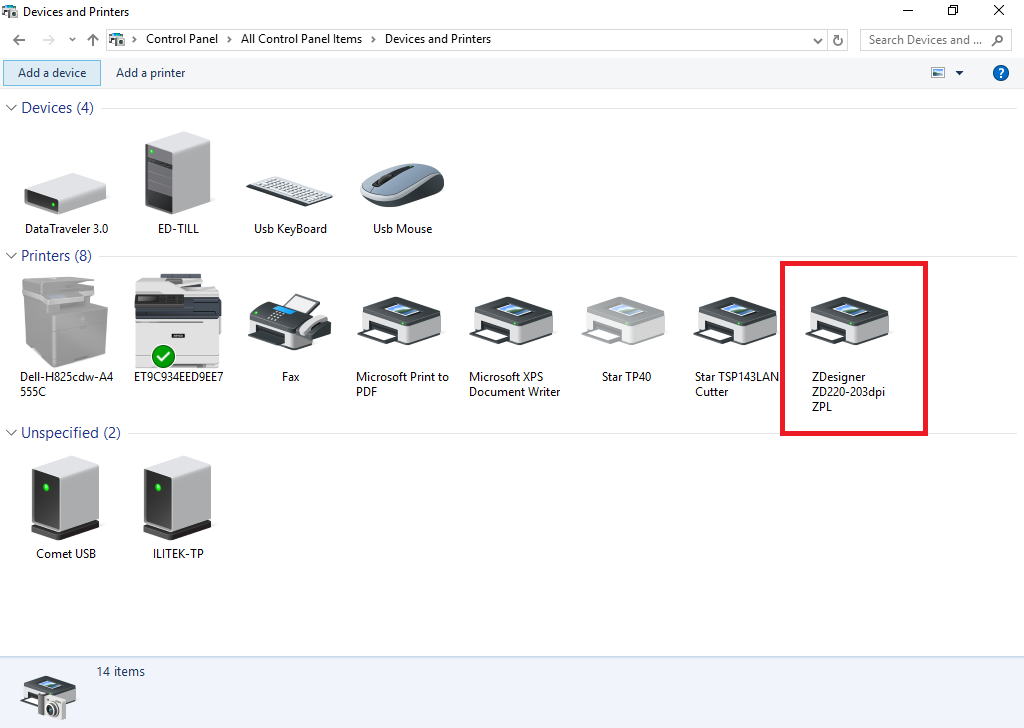

How to configure the printer?
- Press and release Power Button. Lights will cycle.
- Printer ready when status light is steady Green
- Label Calibration - Press and hold the Feed Button until status light blinks off and on twice. then release.
- Test Print - Press and hold the Feed button until the status light blinks off and on ONCE then release
